GENERAL DESCRIPTION

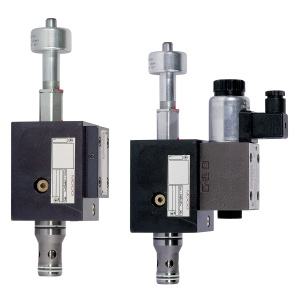

RSE Servovalve NG16-NG100 3 Position monitored active cartridge for manifold mounting Ports A and B are either closed or fully open allowing bi-directional flow. Valve description: The valve comprises a sleeve (2), seated poppet (1) with integral tail rod (4), a non contacting position monitoring switch (5) and the valve body (3). The seated poppet (1) can be controlled by an integral pilot valve (6) mounted on the valve body or externally pilot through the interface ports X and Y. Fast opening and closing times are achieved via the active pilot areas A and A . The position monitoring switch (5) is operated when the nose (7) of the poppet (1) enters the seat diameter on the sleeve (2) closing ports A and B. The poppet (1) then contacts the seat (9) fully blocking ports A and B.

 Manual Detalhado do Produto
