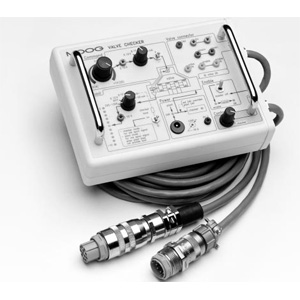

The G040-123 is derived from the M040-120
P/Q Valve Tester. It provides field checking of the
complete range of Moog electrical feedback
(e.f.b.) valves, both proportional and servo, that
have spool position control (Q) only. For valves
with spool position (Q) and pressure control (P),
use M040-120.
It is connected “in-line” between the plant
electronics and the valve so checking of the valve
is made without removing it from the plant, so
that hydraulic and electronic problems can be
isolated.
The checker operates in two modes:
“Checker” and “Plant”.
In “Checker” mode, commands to the
valve come from the checker and the valve spool
signal is monitored on the checker. The “Plant”
command is disconnected and the spool signal is
connected back to the plant electronics.
In “Plant” mode, the checker is a monitor
with the plant electronics commanding the valve
and the spool signal passing back to the plant
and also available for monitoring on the checker.
Internal power is derived from the plant
supply line to the valve or from an external 24V
supply that connects to a front panel
connector on the checker.
